Key Features:

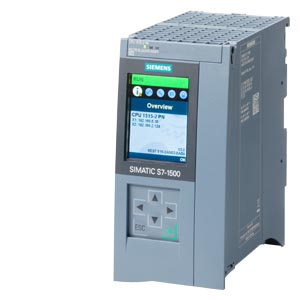

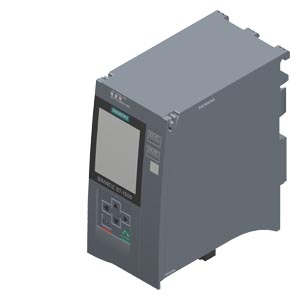

• Model: SIMATIC S7-1500 CPU 1515-2 PN

• Article Number: 6ES7515-2AN03-0AB0

• Performance Class: High-end central processing unit designed for advanced automation systems requiring powerful performance, fast response times, and scalable network communication.

• Work Memory: 1 MB dedicated for program storage, offering robust processing capability for complex and large-scale automation applications.

• Data Memory: 4.5 MB available for data handling, ensuring smooth data processing and efficient control logic management.

• Processing Speed: Exceptional 6 ns bit performance, delivering ultra-fast cycle execution and optimized machine performance.

• Communication Interfaces:

  • 1st Interface: PROFINET IRT (Isochronous Real Time) with integrated 2-port switch for real-time communication and device networking.

  • 2nd Interface: PROFINET RT, enabling additional network flexibility and seamless integration within distributed systems.

• Memory Card Requirement: Compatible with SIMATIC Memory Card (mandatory) for reliable program storage, firmware updates, and secure data backup.

• Approvals & Certificates: Must be considered as per Siemens entry 109817466 at support.industry.siemens.com for detailed certification information.

• Product Lifecycle: Active Product – available for ongoing supply and support.

• Product Class: A – Standard Product, eligible for return under Siemens’ standard return guidelines.

• Design & Build: Compact industrial-grade design for panel mounting and automation cabinets, ensuring durability and long service life.

• Packaging Dimensions: 15.80 × 15.50 × 8.00 cm

• Net Weight: 0.513 kg – lightweight and easy to install.

• Export Control Regulations: AL: N / ECCN: 9N9999 (no export restrictions).

• Delivery: Standard delivery time – 1 Day, packaged as 1 Piece per unit, classified as non-dangerous goods.

• Environmental & Compliance Standards:

  • RoHS Compliant: Since 24.11.2022

  • WEEE (2012/19/EU): Take-back obligations supported

  • REACH Art. 33: Disclosure for materials (Lead, Lead Oxide, etc.)

  • SCIP Number: 7490db78-14f9-4f75-b412-83a2923cf118

• Sustainability: Environmentally responsible manufacturing and recyclable materials contribute to Siemens’ sustainability initiatives.

• Product Family: Part of the SIMATIC S7-1500 series, Siemens’ flagship line of PLCs known for performance, scalability, and future-ready automation.

• Country of Origin: Germany – representing superior engineering and industrial-grade quality.

• Industry Classification Codes:

  • eClass: 27-24-22-07

  • ETIM: EC000236

  • UNSPSC: 32-15-17-05
