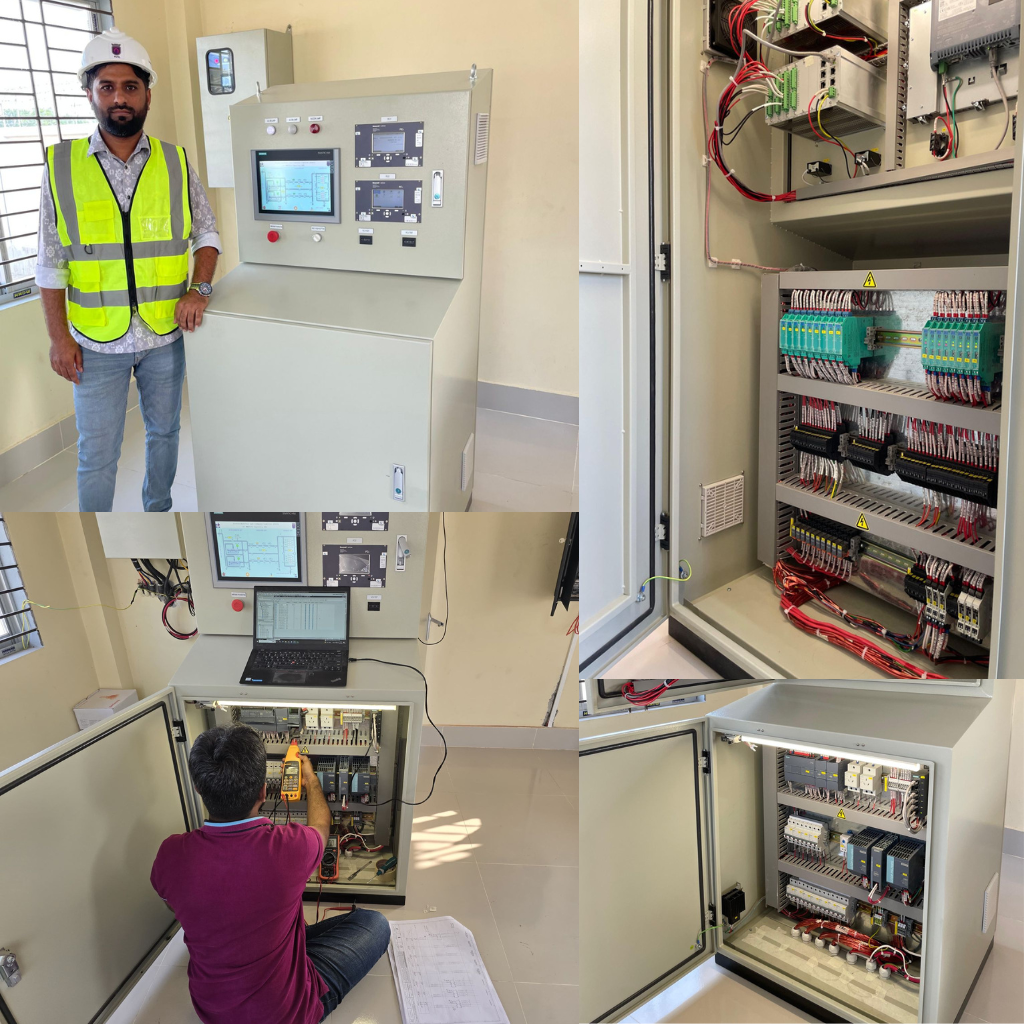

We created the designs, programmed the PLC and HMI, and monitored the sales gas metering data from the Honeywell Flow Computer, in addition to providing a desk-mounted control panel and electrical distribution board sourced from overseas.
Installation, Testing & Commissioning.
𝙀𝙣𝙙 𝘾𝙪𝙨𝙩𝙤𝙢𝙚𝙧: 𝘾𝙝𝙖𝙩𝙩𝙤𝙜𝙧𝙖𝙢 𝙎𝙞𝙡𝙤,
North Patenga, Chattogram.
We are pleased to share that recently our team has completed the project. The project was comprised of supply and installation of two 11KV/630A VCB panel (ABB-VD4) which included the operation and protection of the system. Supply of three 11KV/630A VCB (ABB-VD4) and replace with old system, installation & commissioning of the replaced new VCB and appropriate operation with the existing system.
The project also is inclusion of the supply and replacement of existing ACB/MCCB with new supplied ACB 440V/1600A (SIEMENS) and others rated MCCB in the existing LT Panel.
Supply of two PFI Panel accessories (MCCB, MC, Capacitor etc.) replaced into the existing panel.
The compact project has been completed and handed to the authorized process along with proper documentation like Switchgear authentication certificates, drawing, manual etc.
Hardware: SIEMENS S7-1500 and Distributed IO ET-200SP
Software: TIA Portal V17 (WinCC RT Advanced V17)

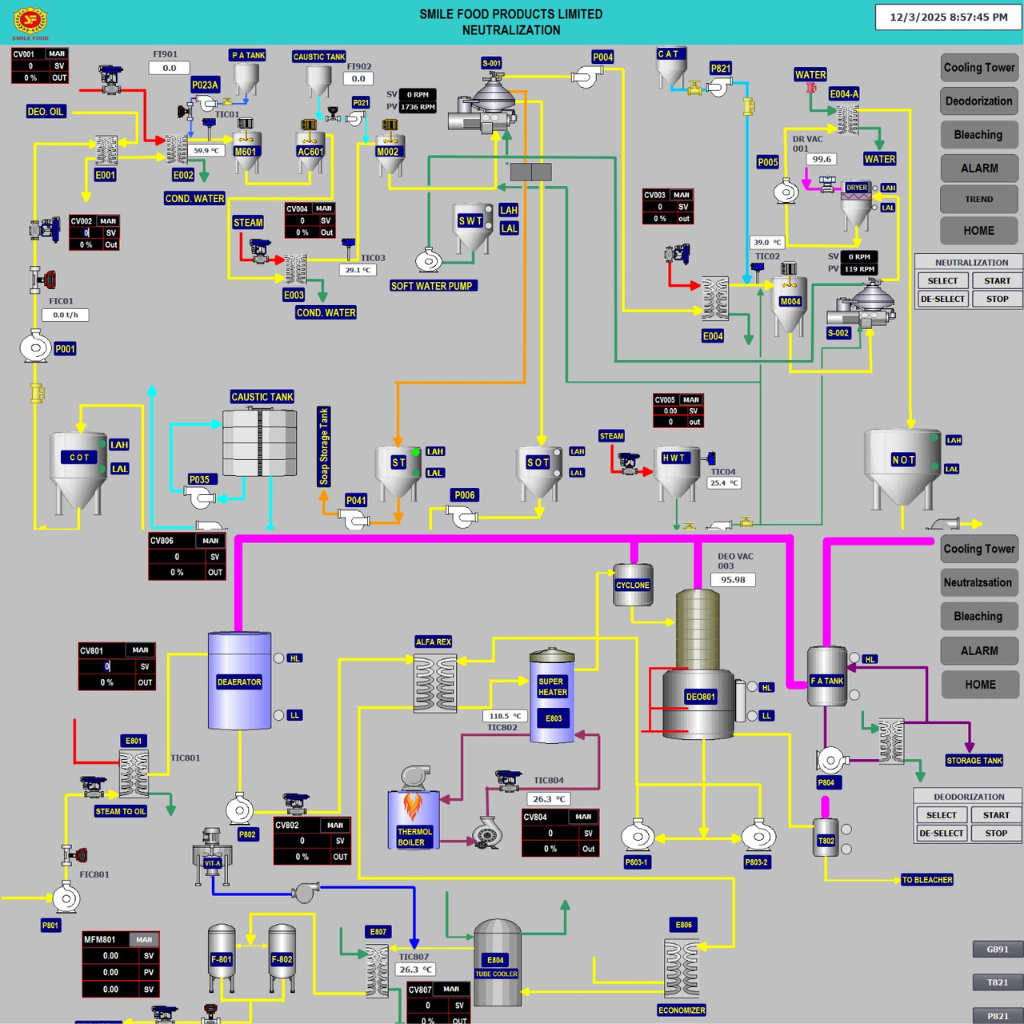

Description: Existing Refiner Plant in a Compact SCADA Solution, where the Auto/Semi-Auto/Manual Operation Comprised.
1. SCADA Design as per P & I Diagram
2. Operation of Motor, Control Valve, etc
3. Alarm report generation
4. PID control for the valve and VFD-controlled motor
5. Last 7 days Trend Analysis
Customer: A Reputed Pharmaceuticals Company in Bangladesh
Design, Drawing & Supply of Siemens S7-300 PLC, Siemens SITOP Power Supply, CP-341, IM-151, KTP-1200 with Accessories,
Software: TIA Portal V17 Professional.
Programming Develop PLC & SCADA Program
Full automation on PLC programming, HMI design( KTP1200), PC System SCADA WinCC Advanced RT & PC System SCADA WinCC Professional RT. Data logging, Alarm Logging, real-time data archive every minute, automatic data printing to PDF every 24 hours.

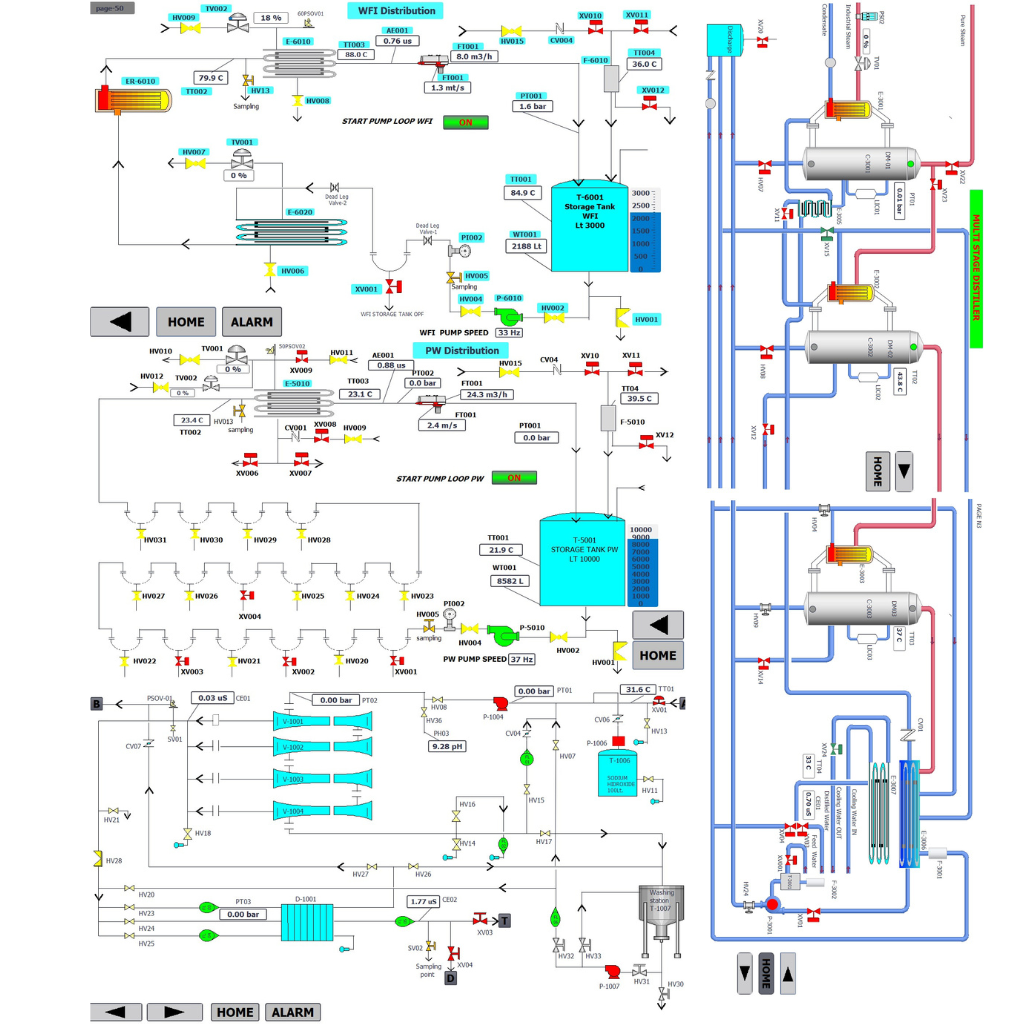

Supply of Siemens S7-300 PLC, SIMATIC HMI KTP-1200 with Program Modification & HMI SCADA Design of PW and WFI Generation & Distribution System.
Design, Drawing & Supply of Siemens PLC, Siemens SITOP Power Supply, Kontron Slim Relay, Kontron Fuse TB & TB, Panel with Accessories, & etc. Design, Drawing & Programming Develop PLC & SCADA Program
Design, Drawing & Supply of Siemens PLC, SIMATIC HMI, Siemens SITOP Power Supply, Kontron Slim Relay, Kontron Fuse TB & TB, Panel with Accessories, & etc. Design, Drawing & Programming Develop PLC & HMI Program
Design, Drawing & Programming Develop PLC Program & Develop PC Based SCADA System
Design, Drawing & Supply of ABB ACB, Siemens Siemens MCCB, Siemens MPCB, Siemens MC, Siemens MCB, Relay, Fuse TB & TB, Panel with Accessories, & etc.
We are specializing in the design, development, commissioning, and support of control systems for various process plants and related sub-processes.
