Hardware- S7-226 & 224 CPU (Existing)
Software- TIA Portal Professional V17 & KEPSERVEREX OPC Server V6.35, SIMATIC Audit Trail V17

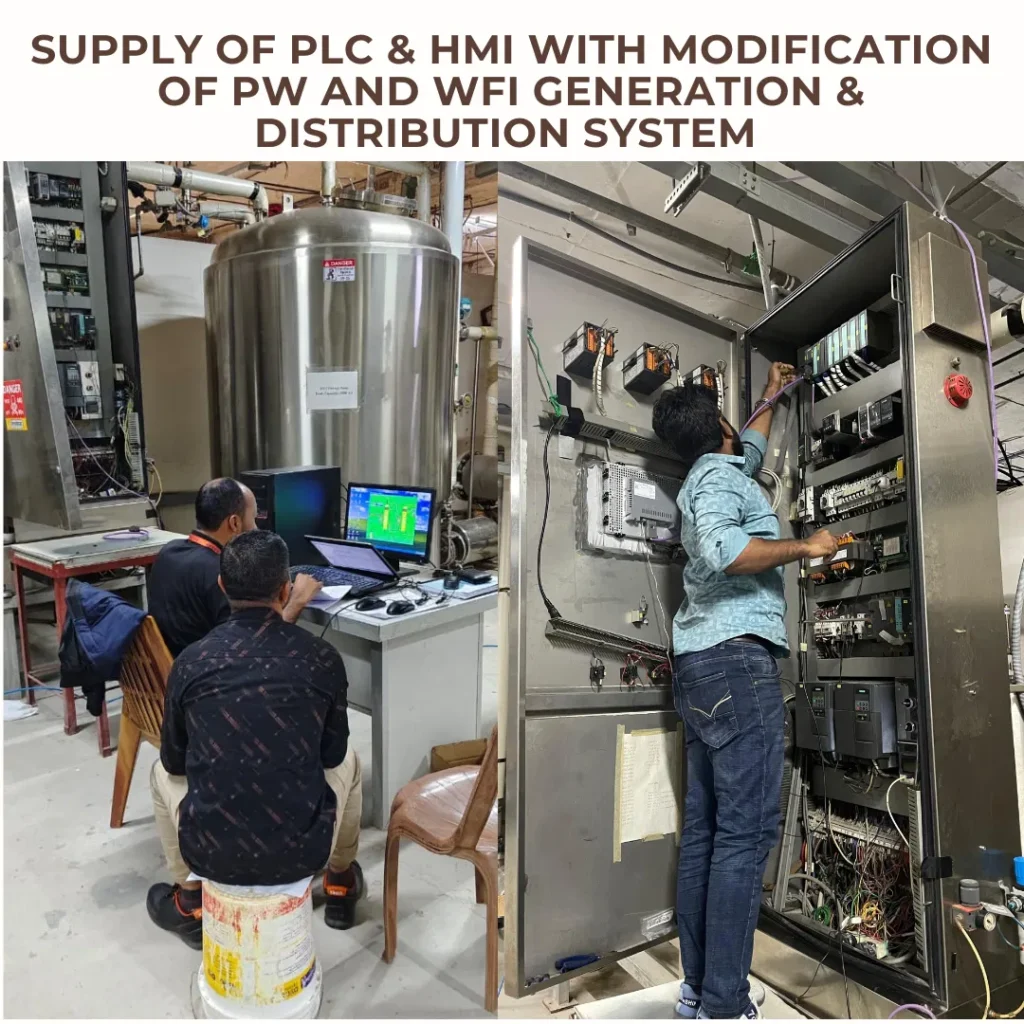

Description: The Existing System is running with S7-226/224 CPU and A 10″ SIEMENS SMART LINE HMI
as customer wants to store the data logging system , alarm log, simatic audit trail, and parallel operation and monitoring of the purified water generation and distribution system.
Project works-

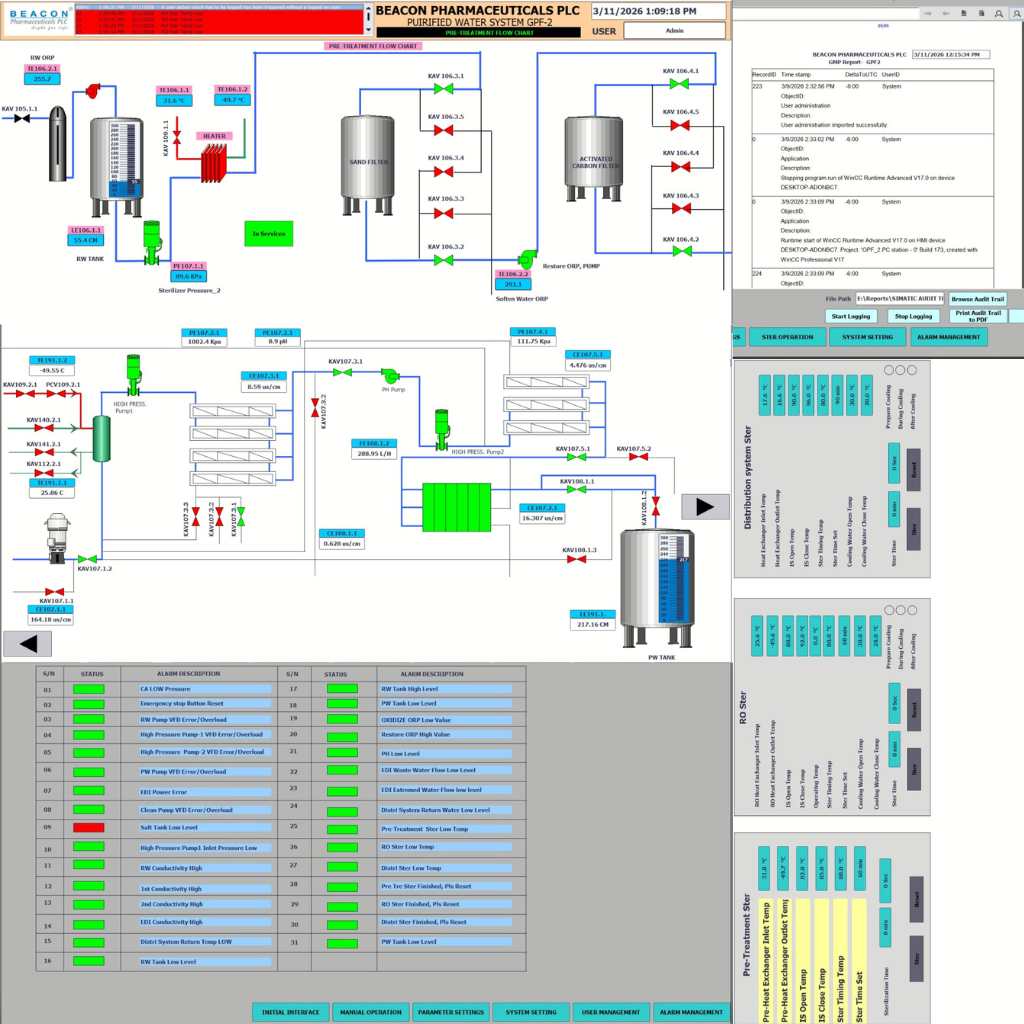

1. SCADA design as per existing HMI & PI Diagram
2. OPC Server & TIA Portal Installation
3. Communication between S7-226/224 CPU & KEPSERVERex through RS485-USB converter
4. Communication with OPC server and WinCC RT Advanced
5. SIMATIC Audit Trail (GMP Report)
6. Alarm Logging
7. Continuous data logging on a .CSV File and .PDF file into the PC Dictory
8. Sterilization Report as .CSV/.PDF file into the PC directory
9. The Continuous data loggig file will be saved every 24 hours with a customized time interval (1min,2min,3min and so on)

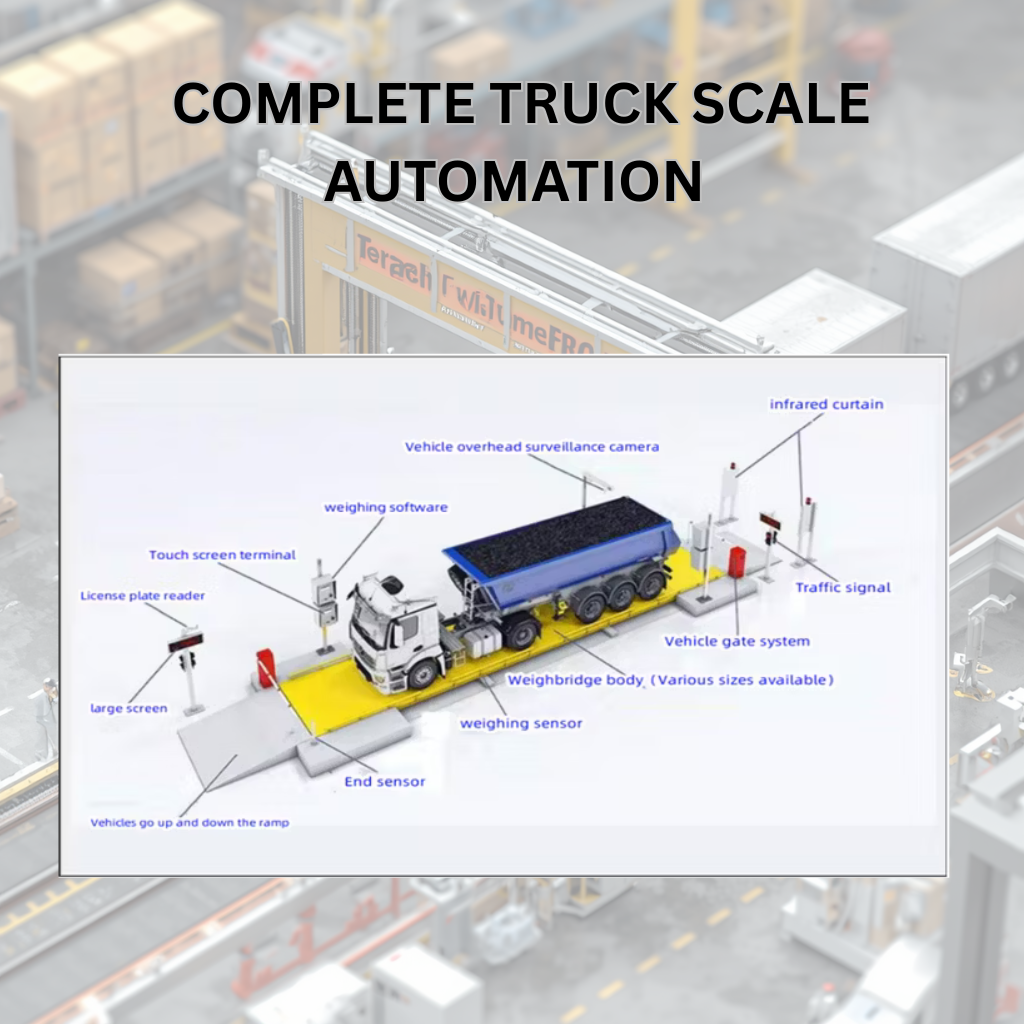

Design, Drawing & Supply of Complete Truck Scale Automation
Loadcell, Capacity :30 Ton, Div: 5 kg (Min),
Indicator: Capacity :Configurable Div: Configurable
Detail: Display: 6 Digit 0.8” LED Display with backlight, Function
Score Board Display, Analogue Junction Box, Software, IPC 15″
5 core Double shield cover signal cable
Programming Develop & SCADA Design
Installation, Testing & Commissioning
Scope of work:

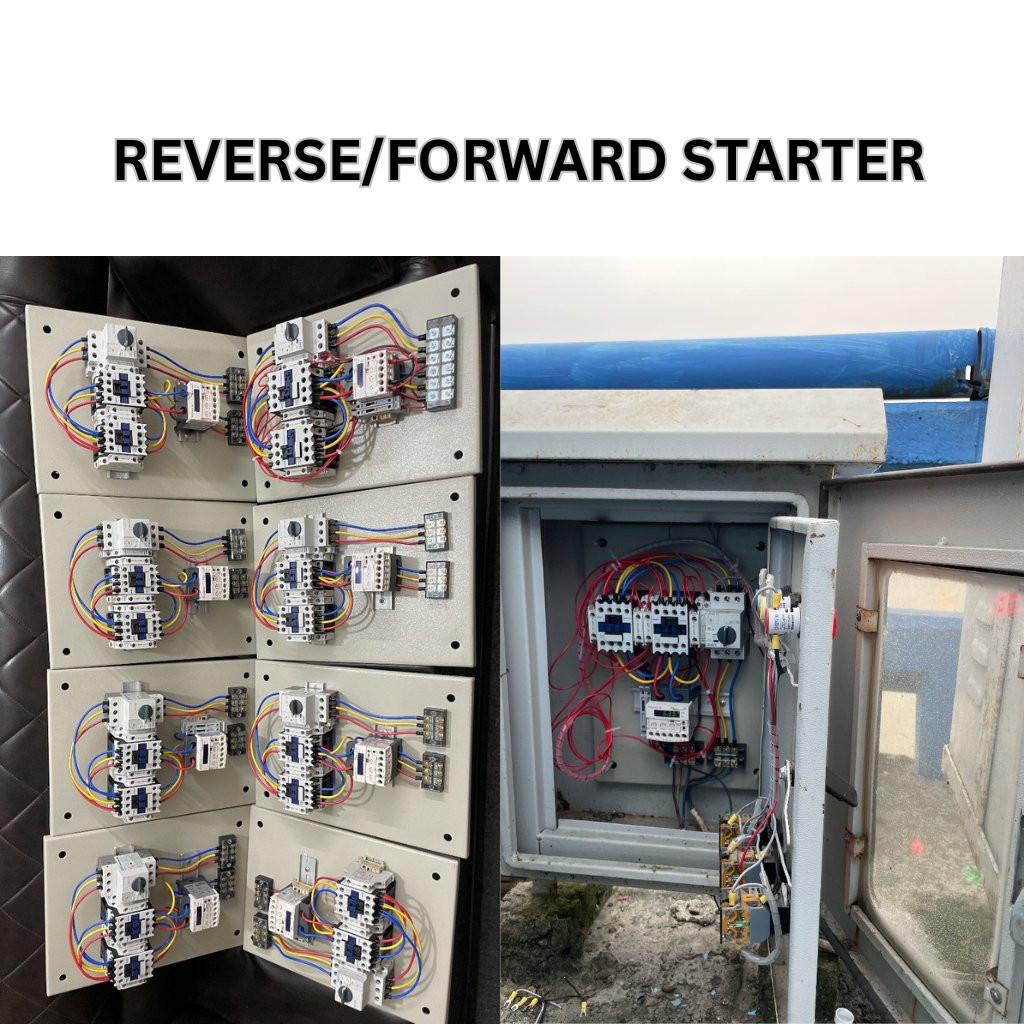

Design & Drawing of Motor Starter
Supply of Rev/Fwd Motor starter
Installation & Commissioning
We are specializing in the design, development, commissioning, and support of control systems for various process plants and related sub-processes.
