Key Features:

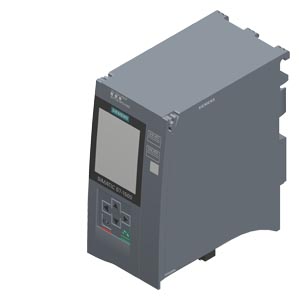

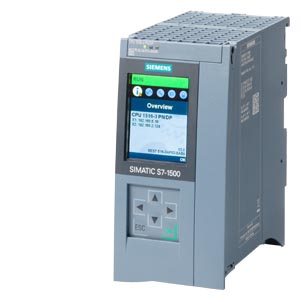

• Model: SIMATIC S7-1500 CPU 1516-3 PN/DP

• Article Number: 6ES7516-3AP03-0AB0

• Performance Level: Advanced mid-to-high-tier controller designed for fast, flexible automation and integrated communication.

• Work Memory: 2 MB for program execution, ensuring smooth handling of complex logic and control structures.

• Data Memory: 7.5 MB for high-volume process and machine data management.

• Processing Speed: Fast 6 ns bit performance for reliable real-time response in demanding automation environments.

• Communication Interfaces:

  • 1st Interface: PROFINET IRT (Isochronous Real Time) with 2-port switch for time-critical data exchange.

  • 2nd Interface: PROFINET RT for standard industrial networking and device integration.

  • 3rd Interface: PROFIBUS master/slave communication for legacy and field-level device connectivity.

• Memory Card Requirement: Requires a SIMATIC Memory Card for program storage and firmware updates.

• System Integration: Compatible with Siemens TIA Portal for seamless engineering, diagnostics, and programming.

• Certifications: Approvals and certificates available under entry 109817466 at support.industry.siemens.com.

• Product Lifecycle: Active Product — fully supported and available for long-term deployment.

• Product Class: A – Standard Stock Item, eligible for return under Siemens return policies.

• Packaging Dimensions: 15.80 × 15.50 × 8.00 cm

• Net Weight: 0.524 kg – compact and lightweight for control cabinet installations.

• Export Control Regulations: AL: N / ECCN: 9N9999

• Standard Delivery Time: 1 Day

• Quantity Unit: 1 Piece

• Dangerous Goods Classification: No – safe for all shipping modes.

• Environmental & Compliance Information:

  • RoHS Directive: Compliant since 24.11.2022

  • WEEE (2012/19/EU): Take-back obligations supported

  • REACH Art. 33: Complies with current candidate list

  • SCIP Number: faf7f631-1e04-454c-ad30-30625564bacb

• Sustainability: Built with environmentally conscious materials and energy-efficient design principles.

• Country of Origin: Germany – precision-engineered for industrial reliability and durability.

• Product Family: CPU 1516-3 PN/DP — part of the Siemens S7-1500 series, ensuring maximum automation efficiency and flexible communication.

• Industry Classification:

  • eClass: 27-24-22-07

  • ETIM: EC000236

  • IDEA: 3565

  • UNSPSC: 32-15-17-05
