Key Features:

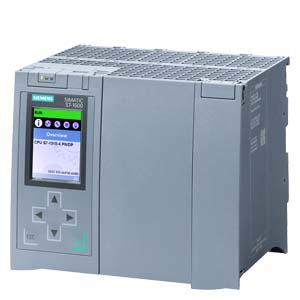

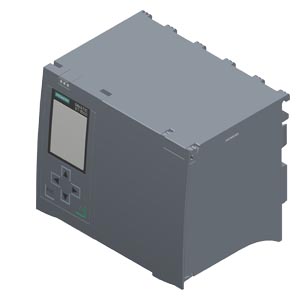

• Model: SIMATIC S7-1500 CPU 1518-4 PN/DP

• Article Number: 6ES7518-4AP00-0AB0

• Performance Class: Ultra high-performance PLC for demanding industrial automation and motion control applications.

• Work Memory: 6 MB for program storage – supports large and complex automation projects.

• Data Memory: 60 MB – ideal for handling extensive process data and integrated data logging.

• Processing Speed: Exceptional 1 ns bit performance, ensuring ultra-fast signal processing and precise control.

• Interfaces:

  • 1st Interface: PROFINET IRT with 2-port switch for high-speed industrial Ethernet communication.

  • 2nd Interface: PROFINET RT for device and system-level networking.

  • 3rd Interface: Ethernet for external connectivity and remote data access.

  • 4th Interface: PROFIBUS – enables connection to legacy systems and field devices.

• Memory Card: Requires a SIMATIC Memory Card for storage, program backup, and firmware management.

• System Integration: Fully compatible with TIA Portal for streamlined configuration, diagnostics, and maintenance.

• Lifecycle Status: Phase Out Announce – product remains available but is scheduled for replacement in future series.

• Product Class: A – Standard Stock Item, returnable as per Siemens’ standard policy.

• Packaging Dimensions: 22.10 × 20.00 × 15.70 cm

• Net Weight: 2.240 kg

• Export Control Regulations: AL: N / ECCN: 9N9999

• Standard Delivery Time: 1 Day

• Quantity Unit: 1 Piece

• Dangerous Goods Classification: No – safe for shipping and handling.

• Environmental & Compliance:

  • RoHS Directive: Compliant since 20.12.2013

  • WEEE (2012/19/EU): Take-back obligations supported

  • REACH Art. 33: Fully compliant with current SVHC list

  • SCIP Number: 3cd861bd-77be-4f9e-8ddc-2dbc7575100f

• Country of Origin: Germany – precision-engineered for industrial-grade reliability.

• Product Family: CPU 1518-4 PN/DP – top-tier PLC in the S7-1500 range, offering superior performance and connectivity.

• Classification Standards:

  • eClass: 27-24-22-07

  • ETIM: EC000236

  • IDEA: 3565

  • UNSPSC: 32-15-17-05

✅ Summary:
The Siemens SIMATIC S7-1500 CPU 1518-4 PN/DP is a powerhouse PLC designed for maximum performance, scalability, and reliability. With four integrated interfaces (PROFINET, PROFIBUS, Ethernet) and lightning-fast 1 ns bit processing, it delivers unmatched speed and flexibility for complex industrial automation systems.
