Product Description:

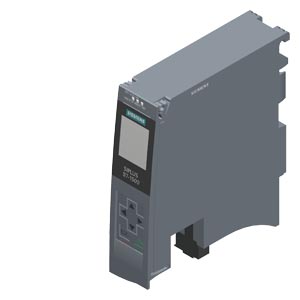

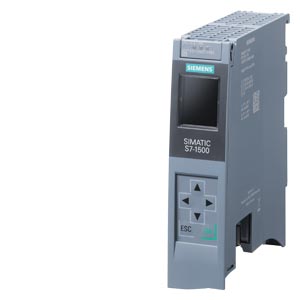

The Siemens SIPLUS S7-1500 CPU 1513-1 PN (based on 6ES7513-1AM03-0AB0) is a rugged, conformal-coated PLC designed for demanding industrial environments and extreme temperatures from -40 °C to +70 °C. It offers exceptional reliability and processing speed, making it ideal for outdoor installations, energy systems, and mission-critical automation applications.

🔍 Key Technical Features:

• Model: SIPLUS S7-1500 CPU 1513-1 PN

• Article Number: 6AG1513-1AM03-7AB0

• Base Model: 6ES7513-1AM03-0AB0

• Temperature Range: -40 °C to +70 °C (extended operation)

• Protection: Conformal coating – resistant to humidity, dust, and corrosive atmospheres

• Work Memory: 600 KB for program execution

• Data Memory: 2.5 MB for data storage

• Bit Performance: 25 ns for high-speed signal processing

• Communication Interface: PROFINET IRT with integrated 2-port switch

• Memory Requirement: SIMATIC Memory Card (mandatory)

• Lifecycle Status: Active Product

• Product Class: A – Standard stock item (returnable as per Siemens policy)

• Net Weight: 0.452 kg

• Delivery Time: 30 Days (standard)

• Export Control Regulations: AL : N / ECCN : EAR99H

• Country of Origin: Germany

🌿 Environmental & Compliance:

• WEEE (2012/19/EU): Take-back obligations supported

• RoHS Directive: Compliant since 13.09.2024

• REACH Regulation: Fully compliant with candidate list

• Dangerous Goods: No

• eClass: 27-24-22-07

• ETIM: EC000236

• UNSPSC: 32-15-17-05
