Product Description:

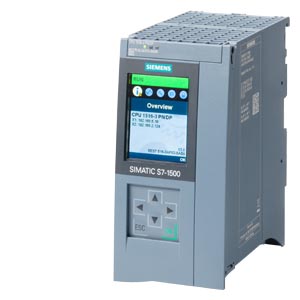

The Siemens SIPLUS S7-1500 CPU 1516-3 PN/DP is a high-performance central processing unit designed for advanced automation systems requiring precision, speed, and environmental durability. Based on the standard SIMATIC S7-1500 CPU 1516-3 PN/DP (6ES7516-3AP03-0AB0), this SIPLUS version is equipped with conformal coating for reliable operation in harsh industrial environments with temperatures ranging from –40 °C to +60 °C.

The CPU features 2 MB of program memory and 7.5 MB of data memory, delivering strong performance for complex automation and motion control applications. With a 6 ns bit processing speed, it ensures fast, deterministic response times in time-critical processes.

Three integrated communication interfaces — PROFINET IRT with 2-port switch, PROFINET RT, and PROFIBUS — provide flexible connectivity for networked control systems and distributed I/O architectures. A SIMATIC Memory Card is required for program storage, firmware updates, and secure data handling.

This unit is ideal for mid- to large-scale automation tasks in manufacturing, energy, and process industries, where both performance and environmental resilience are essential.

Key Specifications:

• Model: SIPLUS S7-1500 CPU 1516-3 PN/DP

• Article Number: 6AG1516-3AP03-2AB0

• Operating Temperature: –40 °C to +60 °C

• Work Memory: 2 MB (program)

• Data Memory: 7.5 MB

• Processing Speed: 6 ns per bit

• Communication Interfaces:

  • 1st Interface: PROFINET IRT with 2-port switch

  • 2nd Interface: PROFINET RT

  • 3rd Interface: PROFIBUS

• Product Lifecycle: Active Product

• Product Class: A – Standard stock item, returnable under Siemens guidelines

• Net Weight: 0.604 kg

• Export Control Regulations: AL: N / ECCN: EAR99H

• Compliance: RoHS (since 13.09.2024), WEEE Take-Back Obligations supported

• Country of Origin: Germany

The SIPLUS S7-1500 CPU 1516-3 PN/DP combines the proven performance of the SIMATIC S7-1500 series with enhanced environmental resistance, making it the preferred choice for industrial automation in demanding applications.
