Product Description:

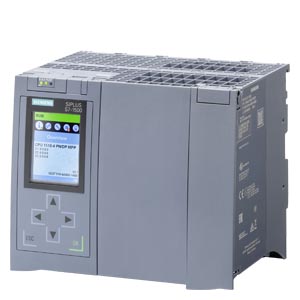

The Siemens SIPLUS S7-1500 CPU 1518-4 PN/DP delivers maximum control performance for complex automation tasks in demanding industrial environments. Based on the standard SIMATIC S7-1500 CPU 1518-4 PN/DP (6ES7518-4AP00-0AB0), this SIPLUS variant features conformal coating for reliable operation under extended temperature ranges from 0 °C to +60 °C, protecting against humidity, dust, and corrosive atmospheres.

Equipped with 4 MB of work memory for programs and 20 MB for data, this CPU provides exceptional capacity for large-scale process, motion, and production automation systems. With an ultra-fast 1 ns bit processing speed, it ensures high-precision, deterministic performance for advanced control applications.

Four integrated communication interfaces — two PROFINET IRT ports with a 2-port switch, one additional Ethernet port, and one PROFIBUS interface — enable flexible connectivity for complex, distributed automation networks. A SIMATIC Memory Card is required for program storage, firmware updates, and secure data handling.

Designed for applications requiring top-tier performance and reliability, the SIPLUS CPU 1518-4 PN/DP is ideal for manufacturing, energy, and process industries operating in challenging environmental conditions.

Key Specifications:

• Model: SIPLUS S7-1500 CPU 1518-4 PN/DP

• Article Number: 6AG1518-4AP00-4AB0

• Operating Temperature: 0 °C to +60 °C

• Work Memory: 4 MB (program)

• Data Memory: 20 MB

• Processing Speed: 1 ns per bit

• Communication Interfaces:

  • 1st: PROFINET IRT with 2-port switch

  • 2nd: Ethernet

  • 3rd: Ethernet

  • 4th: PROFIBUS

• Product Lifecycle: Phase Out Announced

• Product Class: B – Return restricted, contact Siemens partner

• Net Weight: 2.299 kg

• Packaging Dimensions: 22.00 × 20.00 × 16.00 cm

• Export Control Regulations: AL: N / ECCN: 9N9999

• Compliance: RoHS (since 11.06.2014), WEEE Take-Back supported, REACH Art. 33 compliant

• Country of Origin: Germany

Engineered for high-speed performance and industrial resilience, the SIPLUS S7-1500 CPU 1518-4 PN/DP ensures long-term reliability and seamless integration into Siemens’ automation ecosystem.
