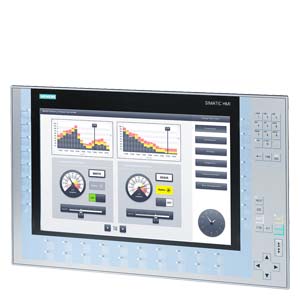

The SIMATIC HMI KP1500 Comfort is a high-performance 15-inch operator panel from Siemens’ premium Comfort Panel series. Designed for advanced industrial automation, this HMI combines a high-resolution touchscreen display with an integrated function keypad, offering maximum flexibility for operators who require both tactile and graphical interfaces — especially in environments where gloves are used or touch precision is critical.

Key Features:

• 15″ TFT widescreen display with capacitive touch

• Integrated function keys and navigation keypad

• High resolution (1280 x 800), 65,536 colors for detailed process visualization

• Dual communication: PROFINET and MPI/PROFIBUS DP

• User-friendly configuration with WinCC Comfort/Advanced via TIA Portal

• Industrial-grade aluminum front panel with IP65 protection

• USB, SD card, and audio interface support

• Ideal for complex automation systems and operator control panels

Technical Specifications:

• Article Number: 6AV2124-1QC02-0AX1

• Display Size: 15 inches

• Resolution: 1280 x 800 pixels

• User Memory: 24 MB

• Interfaces: Ethernet (PROFINET), MPI/PROFIBUS, USB

• Mounting Type: Panel mounting

• Net Weight: Approx. 3.6 kg

• Country of Origin: Germany

• Product Lifecycle: Active (PM300)

• Compliance: RoHS, REACH
