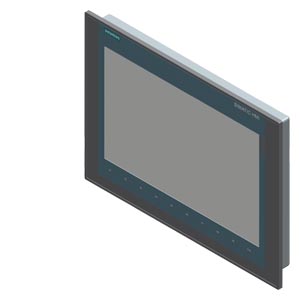

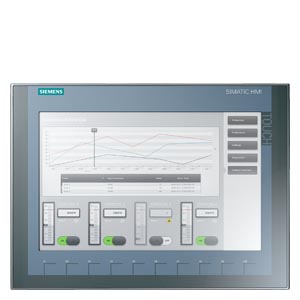

The Siemens 6AV2123-2MA03-0AX0 SIMATIC HMI KTP1200 Basic is a powerful and user-friendly 12-inch HMI panel designed for efficient machine-level operation.

Designed for standard automation tasks in industrial environments. It features a widescreen TFT display with 65,536 colours, providing clear, vibrant process visualisation. The panel supports both touch and key operation, ensuring flexible interaction for operators.

As part of Siemens’ second-generation Basic Panel series, the KTP1200 combines reliable performance with cost-efficiency. It is ideal for monitoring and controlling small to mid-sized machines and systems.

The 6AV2123-2MA03-0AX0 SIMATIC HMI KTP1200 Basic Panel is a 12-inch, high-performance Human Machine Interface from Siemens, designed for intuitive operation and seamless automation. Offered by Apical Industrial Solution & Technology, a trusted Siemens product supplier in Bangladesh, this HMI panel combines touchscreen and key operation, making it ideal for machine-level control in industrial environments. With PROFINET connectivity, a bright TFT display, and easy configuration via TIA Portal, the KTP1200 Basic delivers reliability, user-friendliness, and cost-effectiveness. At Apical, we provide complete support, including programming, integration, and technical services, to ensure your automation projects run smoothly.

Key Features:

• 12″ TFT widescreen display with touch/key operation

• 65,536 colours for high-contrast visualisation

• PROFINET communication interface

• Configurable with WinCC Basic V13 / STEP 7 Basic V13 or higher

• Rugged front panel with IP65 protection rating

• RoHS compliant and WEEE take-back supported

• Suitable for a wide range of industrial HMI applications

Technical Specifications:

• Article Number: 6AV2123-2MA03-0AX0

• Display Resolution: 800 x 480 pixels

• Memory: 10 MB for user data

• Interfaces: 1 x Ethernet (PROFINET), 1 x USB

• Net Weight: Approx. 1.6 kg

• Country of Origin: Germany

• Product Lifecycle: Active (PM300)

• Compliance: RoHS, REACH
