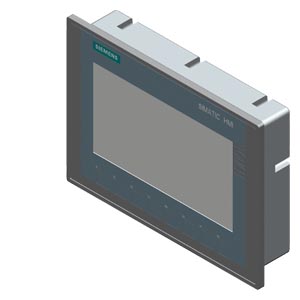

The SIMATIC HMI KTP700 Basic is a versatile 7-inch Human Machine Interface (HMI) panel from Siemens, designed for standard automation applications. It features a high-resolution TFT color display with 65,536 colors and supports both key and touch operation, offering flexible and intuitive user interaction.

As part of Siemens’ second-generation Basic Panel family, this model delivers reliable performance and cost-efficiency, making it ideal for monitoring and controlling small to medium-sized machines and systems.

Key Features:

• 7″ TFT widescreen display with key/touch operation

• 65,536 colors for clear, detailed visualization

• PROFINET communication interface

• Configurable with WinCC Basic V13 / STEP 7 Basic V13 or higher

• Robust design with IP65-rated front panel

• RoHS compliant and WEEE take-back supported

• Ideal for basic HMI tasks in industrial environments

Technical Specifications:

• Article Number: 6AV2123-2GA03-0AX0

• Net Weight: 0.89 kg

• Packaging Dimensions: Approx. 24.5 x 20.0 x 6.5 cm

• Country of Origin: Germany

• Product Lifecycle: Active (PM300)

• Compliance: RoHS, REACH
