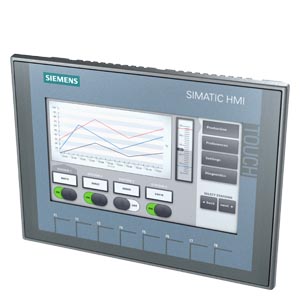

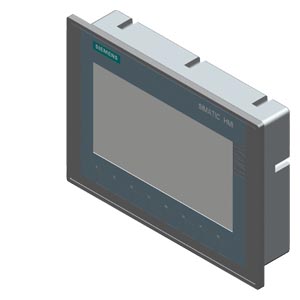

The SIMATIC HMI KTP700 Basic is a compact and cost-effective 7-inch Human Machine Interface (HMI) panel from Siemens, designed for efficient operation and monitoring in standard automation applications. It features a bright TFT color display with 65,536 colors and supports both key and touch operation, ensuring flexible and user-friendly interaction.

Key Features:

• 7″ TFT widescreen display with key/touch operation

• 65,536 colors for vivid and clear visualization

• PROFINET communication interface

• Configurable with WinCC Basic V13 / STEP 7 Basic V13 or higher

• Compact and rugged design with IP65 front protection

• RoHS compliant and WEEE take-back supported

• Ideal for small to medium-sized automation projects

Technical Specifications:

• Article Number: 6AV2123-2GB03-0AX0

• Net Weight: Approx. 0.89 kg

• Display Resolution: 800 x 480 pixels

• Memory: 10 MB for user data

• Interfaces: 1 x Ethernet (PROFINET), 1 x USB

• Mounting Type: Panel mounting

• Country of Origin: Germany

• Product Lifecycle: Active (PM300)

• Compliance: RoHS, REACH
