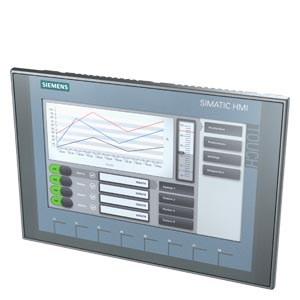

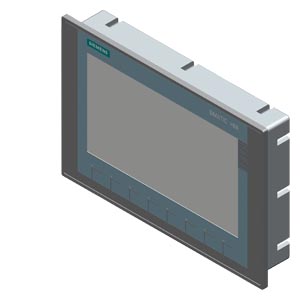

The SIMATIC HMI KTP900 Basic is a high-quality 9-inch Human Machine Interface (HMI) panel from Siemens, designed to meet the demands of standard industrial automation applications. It features a widescreen TFT display with 65,536 colors and supports both touch and key operation for flexible and user-friendly control.

As part of Siemens’ second-generation Basic Panel series, this model offers a cost-effective, reliable solution for visualization and control tasks. It is ideal for small to medium-sized machines and systems across various industrial sectors.

Key Features:

• 9″ TFT widescreen display with key/touch operation

• 65,536 colors for high-quality visualization

• PROFINET communication interface

• Configurable with WinCC Basic V13 / STEP 7 Basic V13 or higher

• Durable front panel with IP65 protection

• Compact design, suitable for panel mounting

• RoHS compliant and WEEE take-back supported

• Ideal for cost-effective HMI solutions in automation

Technical Specifications:

• Article Number: 6AV2123-2JB03-0AX0

• Display Resolution: 800 x 480 pixels

• Memory: 10 MB user memory

• Interfaces: 1 x Ethernet (PROFINET), 1 x USB

• Net Weight: Approx. 1.1 kg

• Country of Origin: Germany

• Product Lifecycle: Active (PM300)

• Compliance: RoHS, REACH
