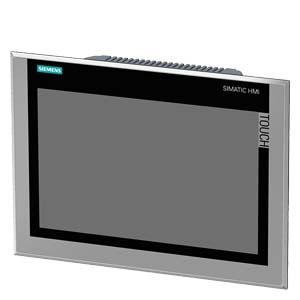

The SIMATIC HMI TP1200 Comfort INOX is a 12-inch industrial touchscreen panel from Siemens, specifically designed for hygienic and washdown environments, such as food, beverage, and pharmaceutical industries. Its stainless-steel (INOX) front and fully sealed IP69K rating ensure maximum protection against water, high-pressure cleaning, steam, and corrosion, guaranteeing reliable operation in demanding industrial conditions.

Equipped with a high-brightness, sunlight-readable display and a capacitive multi-touch interface, the TP1200 Comfort INOX allows intuitive operation even with gloves. Integration with Siemens automation systems is seamless via PROFINET, and it is fully compatible with WinCC Comfort/Advanced in TIA Portal, providing a complete solution for visualization, monitoring, and control.

Key Benefits

• 12″ TFT widescreen display with high brightness for excellent readability

• Capacitive multi-touch screen, glove-operable

• Stainless-steel (INOX) front for hygienic, corrosion-resistant use

• IP69K-rated front panel for protection against water, steam, and high-pressure cleaning

• PROFINET-enabled for seamless integration with industrial networks

• Compatible with WinCC Comfort/Advanced in TIA Portal

• Ideal for food, beverage, pharmaceutical, and other hygienic applications

Technical Specifications

• Article Number / Model: 6AV2144-8MC10-0AA0

• Display Size: 12 inches (TFT widescreen)

• Resolution: 1280 × 800 pixels

• User Memory: 24 MB

• Interfaces: Ethernet (PROFINET), USB

• Mounting Type: Panel mounting

• Front Protection: IP69K

• Operating Temperature: 0 °C to +50 °C

• Net Weight: Approx. 5.5 kg

• Compliance: RoHS, CE; suitable for hygienic and corrosive environments
