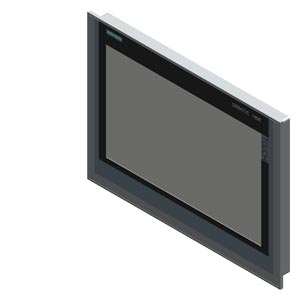

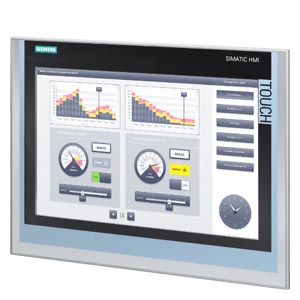

The SIMATIC HMI TP1500 Comfort is a premium 15-inch widescreen touchscreen HMI panel from Siemens, engineered for high-end industrial automation and process control applications. As part of the Comfort Panel series, it delivers exceptional performance, durability, and visualization capabilities, making it ideal for complex systems that require real-time control and operator interaction.

Key Features:

• 15″ TFT widescreen display with capacitive multi-touch

• 65,536 colors and 1366 x 768 resolution for sharp, detailed visualization

• Supports PROFINET and MPI/PROFIBUS DP communication

• Fast processor and extended user memory for high performance

• Configurable via WinCC Comfort/Advanced in TIA Portal

• Rugged IP65 front panel with aluminum housing

• Supports USB, SD card, and audio interfaces

• Ideal for high-end HMI applications in factory and process automation

Technical Specifications:

• Article Number: 6AV2124-0QC02-0AX2

• Display Size: 15.4 inches

• Resolution: 1366 x 768 pixels

• User Memory: 24 MB

• Interfaces: Ethernet (PROFINET), MPI/PROFIBUS, USB

• Mounting Type: Panel mounting

• Net Weight: Approx. 3.4 kg

• Country of Origin: Germany

• Product Lifecycle: Active (PM300)

• Compliance: RoHS, REACH
