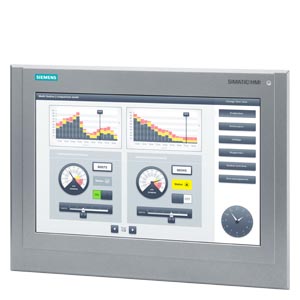

The SIMATIC HMI TP1500 Comfort Outdoor is a robust and weather-resistant 15-inch touchscreen HMI panel from Siemens, engineered for outdoor and harsh industrial environments. As part of the Comfort Panel Outdoor series, it is specifically built to perform reliably in extreme temperatures, direct sunlight, high humidity, and dusty conditions — making it ideal for industries such as water management, energy, transportation, and outdoor equipment control.

Key Features:

• 15″ TFT widescreen display with high brightness for excellent outdoor visibility

• Capacitive touchscreen, operable with gloves

• Optimized for outdoor use: UV-resistant and capable of withstanding extreme weather

• IP65-rated front panel for dust and water resistance

• Supports PROFINET communication

• Configurable using WinCC Comfort/Advanced within the TIA Portal

• Anti-reflective and anti-glare surface for clear readability in sunlight

• Suitable for outdoor automation systems and control stations

 Technical Specifications:

• Article Number: 6AV2124-0QC13-0AX0

• Display Size: 15 inches

• Resolution: 1366 x 768 pixels

• User Memory: 24 MB

• Interfaces: Ethernet (PROFINET), USB

• Mounting Type: Panel mounting

• Front Protection: IP65

• Operating Temperature: Extended outdoor range (e.g., -30°C to +60°C)

• Net Weight: Approx. 3.6 kg

• Product Lifecycle: Active (PM300)

• Compliance: RoHS, REACH
