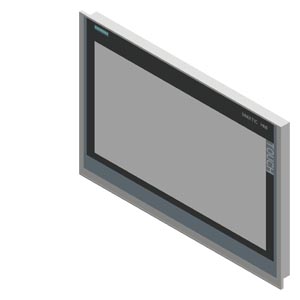

The SIMATIC HMI TP1900 Comfort is a high-end 19-inch widescreen touchscreen HMI panel from Siemens, engineered to meet the demands of advanced industrial automation and large-scale process visualization. As part of the Comfort Panel series, it offers top-tier performance, expansive screen space, and long-term reliability for sophisticated control applications.

Key Features:

• 19″ TFT widescreen display with capacitive multi-touch operation

• 65,536 colors and 1366 x 768 resolution for sharp, detailed graphics

• High-speed performance with a powerful processor and ample memory

• Dual communication support: PROFINET and MPI/PROFIBUS DP

• Configurable with WinCC Comfort/Advanced via TIA Portal

• Rugged aluminum front with IP65-rated protection

• USB, SD card, and audio interface support

• Suitable for high-end HMI solutions in industrial automation

Technical Specifications:

• Article Number: 6AV2124-0UC02-0AX1

• Display Size: 19 inches

• Resolution: 1366 x 768 pixels

• User Memory: 24 MB

• Interfaces: Ethernet (PROFINET), MPI/PROFIBUS, USB

• Mounting Type: Panel mounting

• Net Weight: Approx. 5.2 kg

• Country of Origin: Germany

• Product Lifecycle: Active (PM300)

• Compliance: RoHS, REACH
