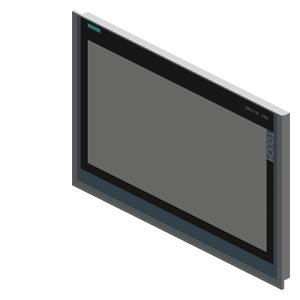

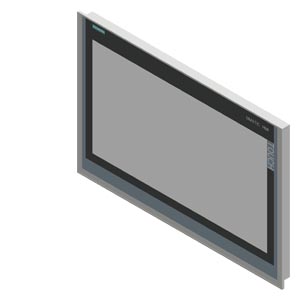

The SIMATIC HMI TP2200 Comfort is a top-tier 22-inch widescreen touchscreen HMI panel from Siemens, designed for highly demanding industrial applications that require extensive process visualization and intuitive operator control.

Key Features:

• 22″ TFT widescreen display with capacitive multi-touch operation

• High-resolution display: 1920 x 1080 (Full HD), 65,536 colors

• PROFINET and MPI/PROFIBUS DP interfaces for flexible connectivity

• Fast processor and 24 MB user memory for advanced performance

• Configurable via WinCC Comfort/Advanced in TIA Portal

• Industrial-grade IP65-rated aluminum front panel

• Supports USB, SD card, and audio interfaces

• Ideal for large-scale industrial control and monitoring

Technical Specifications:

• Article Number: 6AV2124-0XC02-0AX1

• Display Size: 22 inches

• Resolution: 1920 x 1080 pixels (Full HD)

• User Memory: 24 MB

• Interfaces: Ethernet (PROFINET), MPI/PROFIBUS, USB

• Mounting Type: Panel mounting

• Net Weight: Approx. 7.2 kg

• Country of Origin: Germany

• Product Lifecycle: Active (PM300)

• Compliance: RoHS, REACH
