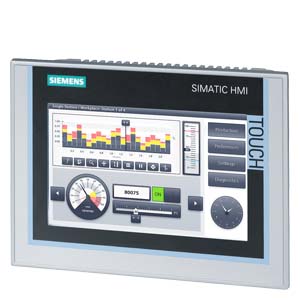

The SIMATIC HMI TP700 Comfort is a high-performance 7-inch touchscreen Human Machine Interface (HMI) from Siemens’ Comfort Panel series, designed for demanding industrial automation applications. With its TFT widescreen display, 65,536 colors, and intuitive touch operation, it delivers exceptional visualization and interaction for machine-level control systems.

Key Features:

• 7″ widescreen TFT display with capacitive touch

• 65,536 colors and 800 x 480 resolution

• High-performance processor for faster response times

• Integrated PROFINET and MPI/PROFIBUS DP interfaces

• Configurable with WinCC Comfort/Advanced via TIA Portal

• Front panel protection: IP65

• Aluminum front with robust build for harsh industrial use

• Supports USB, SD card, and audio interfaces

Technical Specifications:

• Article Number: 6AV2124-0GC01-0AX0

• User Memory: 12 MB

• Interfaces: Ethernet, MPI/PROFIBUS, USB

• Mounting Type: Panel mounting

• Net Weight: Approx. 1.2 kg

• Country of Origin: Germany

• Product Lifecycle: Active (PM300)

• Compliance: RoHS, REACH
