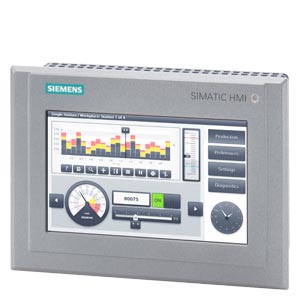

The SIMATIC HMI TP700 Comfort Outdoor is a rugged and weather-resistant 7-inch touchscreen HMI panel from Siemens, specially engineered for use in outdoor and harsh industrial environments. Part of the Comfort Panel Outdoor series, this HMI is designed to operate reliably in extreme temperatures, high humidity, direct sunlight, and dusty conditions — making it ideal for applications such as water treatment plants, renewable energy systems, transportation, and outdoor machine interfaces.

Key Features:

• 7″ TFT widescreen display with high brightness for outdoor visibility

• Capacitive touchscreen, glove-compatible

• Designed for outdoor use: UV-resistant, wide operating temperature range

• IP65 front panel protection for dust and water resistance

• Supports PROFINET communication

• Configurable with WinCC Comfort/Advanced in TIA Portal

• Anti-reflective and anti-glare surface for optimal readability

• Ideal for outdoor machine control and monitoring systems

Technical Specifications:

• Article Number: 6AV2124-0GC13-0AX0

• Display Size: 7 inches

• Resolution: 800 x 480 pixels

• User Memory: 12 MB

• Interfaces: Ethernet (PROFINET), USB

• Mounting Type: Panel mounting

• Front Protection: IP65

• Operating Temperature: Extended outdoor range (e.g., -30°C to +60°C)

• Net Weight: Approx. 1.5 kg

• Product Lifecycle: Active (PM300)

• Compliance: RoHS, REACH
