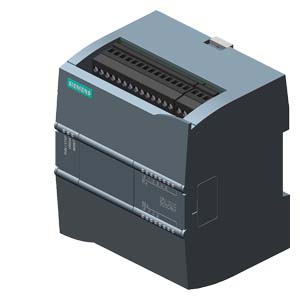

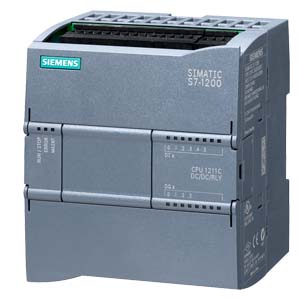

SIMATIC S7-1200, 6ES7211-1AE40-0XB0

Key Features:

• Compact PLC module from the Siemens S7-1200 series

• Integrated 6 Digital Inputs (DI), 4 Digital Outputs (DO), and 2 Analog Inputs (AI)

• Operates with a DC 20.4–28.8 V power supply

• Program/data memory: 75 KB

• Integrated PROFINET interface for communication and programming

• DIN rail mounting for easy installation

Technical Specifications:

• Article Number: 6ES7211-1AE40-0XB0

• Product Family: CPU 1211C

• Power Supply (PS): DC 20.4 – 28.8 V

• Input/Output Configuration: 6 DI / 4 DO / 2 AI

• Analog Input Range: 0 – 10 V DC

• Output Type: DC (transistor)

• Memory: 75 KB work memory

• Net Weight: 0.292 kg

• Package Dimensions: 10.10 × 10.60 × 8.70 cm

• Standard Lead Time: 1 working day ex-works

• Packaging Quantity: 1 Piece

• Installation: DIN rail mounting

• Product Lifecycle Status: PM300 – Active Product

Certifications & Compliance:

• RoHS Compliance: Yes, since 12.12.2013

• WEEE Directive (2012/19/EU): Take-Back Obligation – Yes

• REACH Article 33 Compliance: Contains substances requiring disclosure

Substances Requiring Disclosure:

• Lead (CAS-No. 7439-92-1) > 0.1%

• Lead monoxide (CAS-No. 1317-36-8) > 0.1%

• 6,6′-di-tert-butyl-2,2′-methylenedi-p-cresol > 0.1%

• 4,4′-isopropylidene diphenol (BPA, CAS-No. 80-05-7) > 0.1%

Export Control Regulations:

• AL: N

• ECCN: EAR99H

• Country of Origin: Germany

• Commodity Code: 85371091
