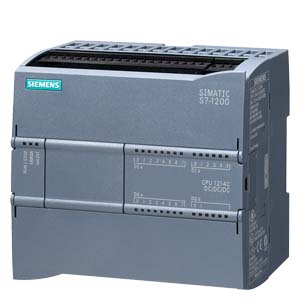

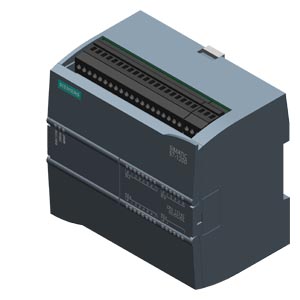

SIMATIC S7-1200, CPU 1214C – 6ES7214-1AG40-0XB0 | Compact PLC AC/DC/Relay

Key Features:

• High-performance PLC from the Siemens S7-1200 series

• Integrated 14 Digital Inputs (DI) and 10 Relay Outputs (DO) for flexible automation

• Operates with a wide-range AC 85–264 V power supply

• Built-in 2 Analog Inputs (AI) for signal measurement and processing

• Large program/data memory: 100 KB for handling advanced applications

• Supports high-speed counters, pulse outputs, and communication interfaces

• Designed for medium-scale automation projects requiring more I/O capacity

Technical Specifications:

• Article Number: 6ES7214-1AG40-0XB0

• Product Family: CPU 1214C

• Power Supply (PS): AC 85 – 264 V

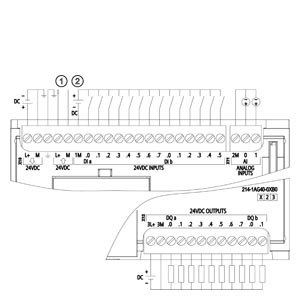

• Input/Output Configuration: 14 DI / 10 DO (Relay) / 2 AI

• Analog Input Range: 0 – 10 V DC

• Output Type: Relay

• Memory: 100 KB

• Net Weight: ~0.60 kg

• Package Dimensions: 12.00 x 13.00 x 10.00 cm (approx.)

• Standard Lead Time: 1 working day ex-works

• Packaging Quantity: 1 Piece

• Installation: DIN rail mounting

• Product Lifecycle Status: PM300 – Active Product

Certifications & Compliance:

• RoHS Compliance: Yes

• WEEE Directive (2012/19/EU): Take-Back Obligation – Yes

• REACH Article 33 Compliance: Contains substances requiring disclosure

  • Lead (CAS-No. 7439-92-1) > 0.1%

  • Lead monoxide (CAS-No. 1317-36-8) > 0.1%

  • 6,6′-di-tert-butyl-2,2′-methylenedi-p-cresol > 0.1%

  • 4,4′-isopropylidene diphenol (BPA, CAS-No. 80-05-7) > 0.1%

Export Control Regulations:

• AL: N

• ECCN: EAR99H

• Country of Origin: Germany

• Commodity Code: 85371091
