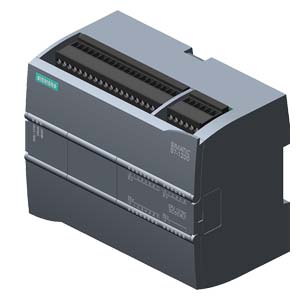

SIMATIC S7-1200, 6ES7215-1HG40-0XB0

Key Features:

• Compact CPU from Siemens S7-1200 series

• Integrated 14 Digital Inputs (DI), 10 Digital Outputs (Relay, 2 A), 2 Analog Inputs (0–10 V DC), 2 Analog Outputs (0–20 mA DC)

• Operates with an AC 85–264 V / DC 20.4–28.8 V power supply

• Equipped with two PROFINET ports for communication and networking

• Program/data memory: 125 KB (expandable up to 200 KB with firmware upgrade)

• Designed for versatile automation solutions in small to medium-sized industrial applications

Technical Specifications:

• Article Number: 6ES7215-1HG40-0XB0

• Product Family: CPU 1215C

• Power Supply (PS): AC 85–264 V / DC 20.4–28.8 V

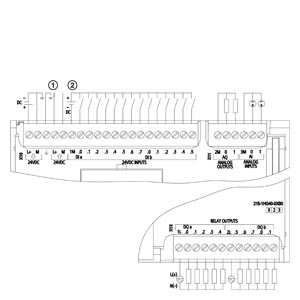

• Input/Output Configuration: 14 DI / 10 DO (Relay) / 2 AI / 2 AO

• Analog Input Range: 0–10 V DC

• Analog Output Range: 0–20 mA DC

• Output Type: Relay (2 A)

• Memory: 125 KB (work and load memory)

• Net Weight: ~0.55 kg

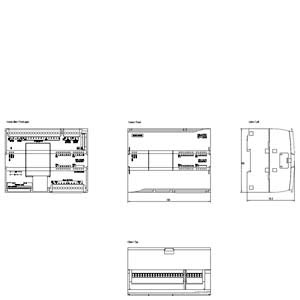

• Dimensions (W x H x D): 130 × 100 × 75 mm

• Standard Lead Time: On request (region dependent)

• Packaging Quantity: 1 Piece

• Installation: DIN rail mounting

• Product Lifecycle Status: PM300 – Active Product

Certifications & Compliance:

• RoHS Compliance: Yes, since 12.12.2013

• WEEE Directive (2012/19/EU): Take-Back Obligation – Yes

• REACH Article 33 Compliance: Contains substances requiring disclosure

  • Lead (CAS-No. 7439-92-1) > 0.1%

  • Lead monoxide (CAS-No. 1317-36-8) > 0.1%

  • 6,6′-di-tert-butyl-2,2′-methylenedi-p-cresol > 0.1%

  • 4,4′-isopropylidene diphenol (BPA, CAS-No. 80-05-7) > 0.1%

Export Control Regulations:

• AL: N

• ECCN: EAR99H

• Country of Origin: Germany

• Commodity Code: 85371091
