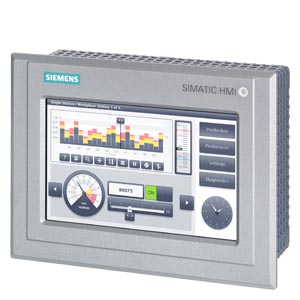

The SIPLUS HMI TP700 Comfort Outdoor is a rugged and industrial-grade 7-inch touchscreen HMI panel, specially designed by Siemens for use in harsh outdoor environments. Based on the SIMATIC Comfort Panel series, this SIPLUS variant offers extended protection and enhanced reliability under extreme environmental stress.

Key Features:

• 7″ TFT widescreen display with high brightness for superior outdoor readability

• Capacitive touchscreen, operable with gloves

• Enhanced for extreme environments: condensation-resistant, corrosion-resistant components

• Wide operating temperature range, suitable for demanding outdoor use

• IP65-rated front panel for reliable protection against dust and water

• PROFINET-enabled for seamless integration in industrial networks

• Compatible with WinCC Comfort/Advanced in TIA Portal

• Anti-reflective and anti-glare screen surface

• Perfect for control and monitoring in exposed environments

Technical Specifications:

• Article Number: 6AG1124-0GC13-2AM0

• Display Size: 7 inches

• Resolution: 800 x 480 pixels

• User Memory: 12 MB

• Interfaces: Ethernet (PROFINET), USB

• Mounting Type: Panel mounting

• Front Protection: IP65

• Operating Temperature: Approx. -30°C to +60°C (extended SIPLUS range)

• Condensation Protection: Yes (with conformal coating)

• Net Weight: Approx. 1.5 kg

• Product Lifecycle: Active (PM300)

• Compliance: RoHS, REACH, suitable for corrosive environments
